Stainless Steel Eye Bolts

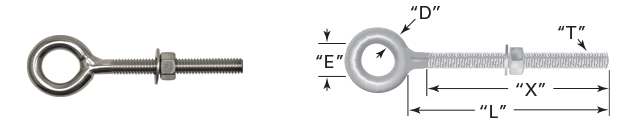

Stainless Steel Eye Bolt Schematic
Stainless Steel Plain Eye Bolts, Welded  316SS
Size
Part No. WLL
(lbs.)
"T"
THREAD
"L"
BODY
LENGTH
"E"
EYE DIA.
"X"
THREAD
LENGTH
3/16" 30HEPW30632 150 10"-24 1.000" .343" .875"
1/4" 30HEPW30840 400 1/4"-20 1.250" .500" 1.000"
1/4" 30HEPW30872 400 1/4"-20 2.250" .500" 2.000"
1/4" 30HEPW308100 400 1/4"-20 3.125" .500" 2.750"
1/4" 30HEPW308128 400 1/4"-20 4.000" .500" 3.500"
1/4" 30HEPW308192 400 1/4"-20 6.000" .500" 4.000"
5/16" 30HEPW310100 600 5/16"-18 3.125" .625" 2.750"
5/16" 30HEPW310128 600 5/16"-18 4.000" .625" 3.625"
3/8" 30HEPW312128 1000 3/8"-16 4.000" .750" 3.500"
3/8" 30HEPW312192 1000 3/8"-16 6.000" .750" 5.500"
1/2" 30HEPW316128 1800 1/2"-13 4.000" .9375" 3.500"
1/2" 30HEPW316192 1800 1/2"-13 6.000" .9375" 5.375"
Please click part number to order.
